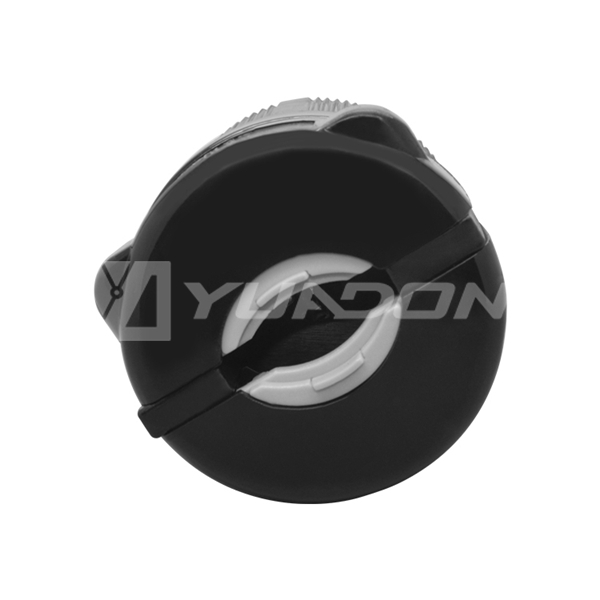

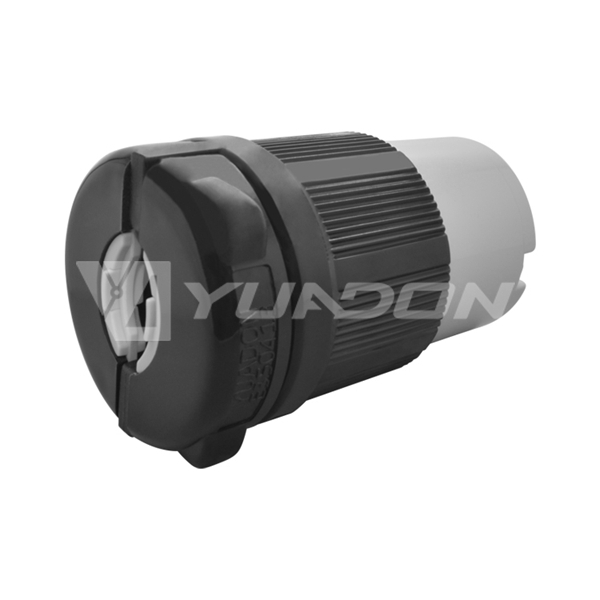

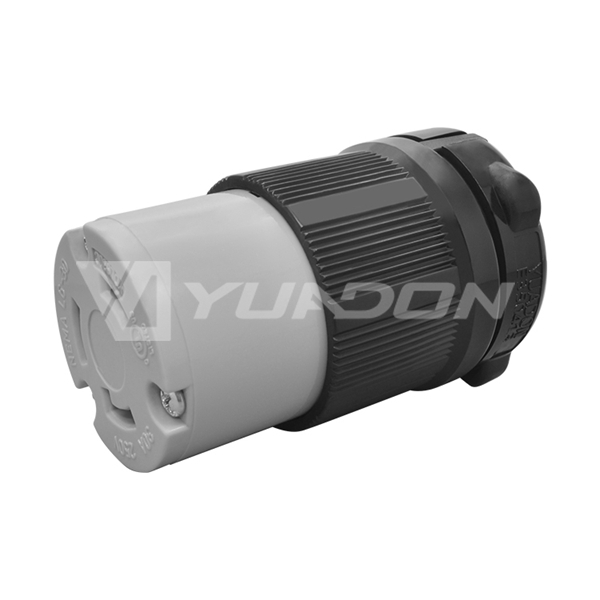

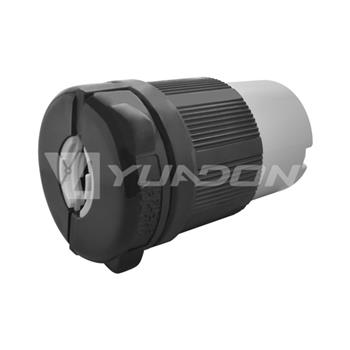

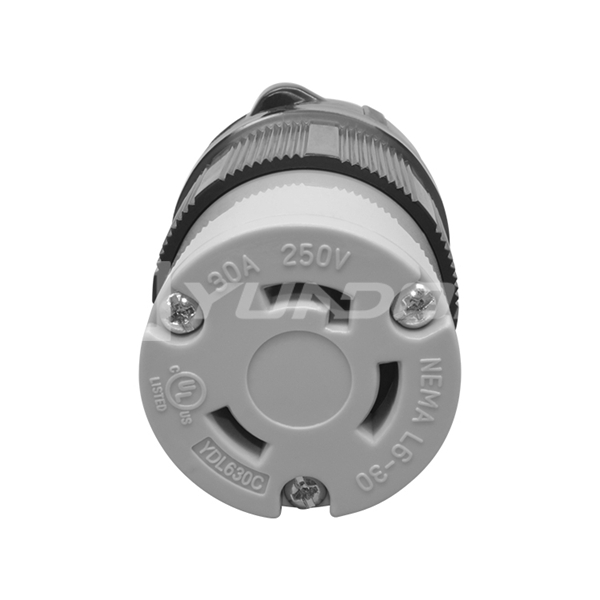

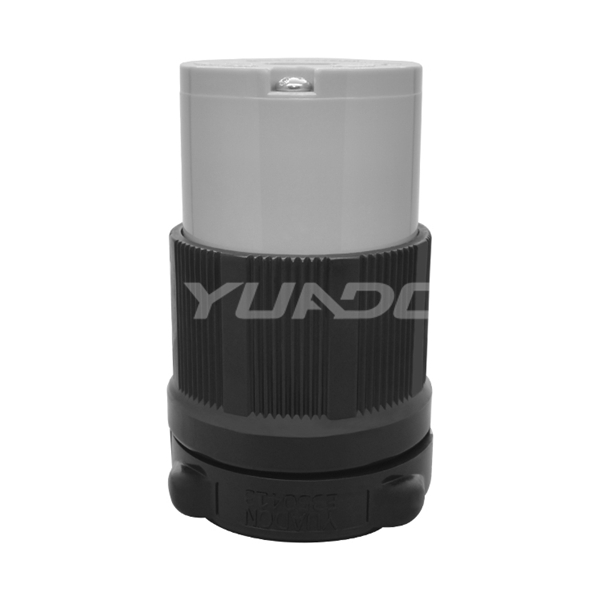

American High Power  Twist-locking NEMA L6-30R Receptacle

NEMA L6-30R 30 Amp 250 Volt USA Locking Rewirable Connector American High Power Receptacle

  • Item Name: YDL630C

  • NEMA Configuration : L6-30r

  • Rated Current: 30A

  • Rated Voltage: 110~240V

  • UL certificate: UL/cUL E350413

  • Sample day: 1-3 days

  • Lead time: 8-15days

  • Guarantee: 365 days

Production details



30 Ampere 250 Volt NEMA L6-30R Twist Lock Connector, Impact Resistant Dupont Nylon Body, Cable Dust / Moisture Shield (IP20), 2 Pole, 3 Wire Grounding (2P+E), Industrial Grade, Black / Gray

Basic Information

Product Item

Twist-Lock Connector

Model number

YDL630C

NEMA Configuration

L6-30R

Wiring Scheme

2 Pole, 3 Wire Grounding

Amperage

30 Amp

Voltage

250V AC

Blade Holder Material

Gray Polycarbonate

Terminal Retainer Material

Clear Polycarbonate

Housing Material

Nylon-Black

Cord Clamp Material

Nylon-Black

Blade Material

Brass

Terminal Screw Material

#10-32 solid Brass

Ground Screw Material

#10-32 solid Brass(Green)

Flammability

HB or better per UL 94

Operating Temperatures

Maximum Continuous 75 ℃

Minimum -40℃(w/o impact)

Listings

UL/cUL  E350413

Rohs Compliant

Yes

Package

100pcs/ctn=18.5KG 43.5*32.5*36cm/ctn

Shipping way

by air/sea/express

Color

Black

Place of Origin

Guangdong, China (Mainland)

Sample day

1-3 days

Mass order Lead time

8-15days



Features

1.Made with dupont nylon ( imported from America) for housing and 100% full copper pin
2. Configuration : 2-Pole, 3-Wire Grounding, NEMA L6-30C, twist lock cord connector
3. Certified by c( UL)us and UL file number is E350413 (Standard: UL 498)
4. Ratings: 30A 250V, AC 60HZ
5. Wiring Method: Back Wiring
6. Terminal Accept : 14/3, 1 2/3, 10/3 AWG Size conductors
7. Strain Relief (Cord Grif Range):  0.375"-1.156" DIA
8. Application: Locking L6-30R power cord connector mounts onto the end of a 3-wire electrical cable



How to buy from us?

1. Please confirm the Products and quantities that you would like to purchase by contacting our sales persons.
2. We will send you a Proforma Invoice once we get your order list, and will help you calculate the best freight charge, by courier, by air or by sea if required.
3. After you send us the payment, please provide the bank copy if possible, so that we can start to arrange production asap.
4. As soon as the goods are shipped out, we will let you know the tracking number.
5. For after sales-service. Please contact the sales persons directly or contact us.

Notes

This charger adapter plug converts the power outlet only, Please don't use it with any high power appliances such as hair dryer, straightener and water heater. Please make sure your device carries an electrical converter when you travel to other countries with different electrical output.

Trade Condition

1. MOQ: 100 pcs / per model after sample order.

2. Payment Terms: T/T, Paypal and L/C for option.

a. By T/T: Bank transfer to YUADON company bank account
b. By Paypal: There will be 4% of total price as paypal fee.
c. By L/C(letter of credit): the order is more than USD10,000.

3. Shipment

We have a Strong cooperation with our forwarder, so we will give a best shipping cost to you
A. For small order, ship by DHL, EMS, UPS, FedEx international express.
B. For big order, ship by Air or by Sea.
