nema l5-20 female connector

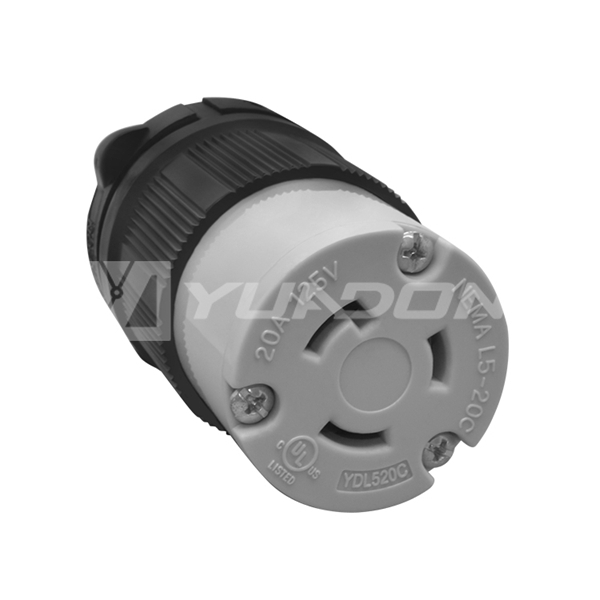

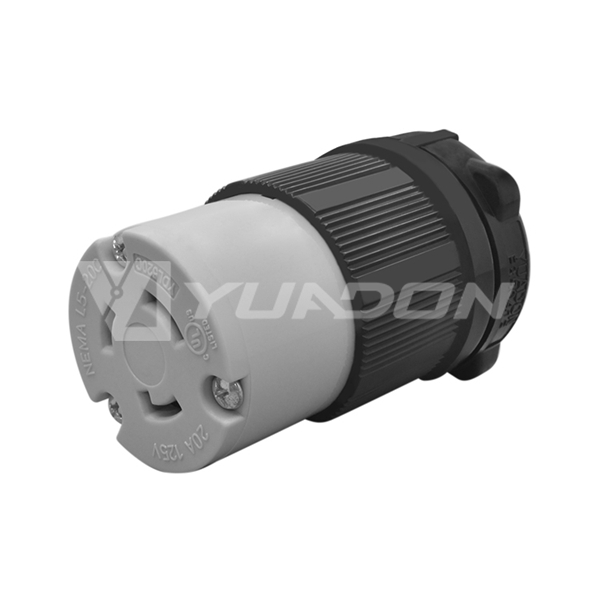

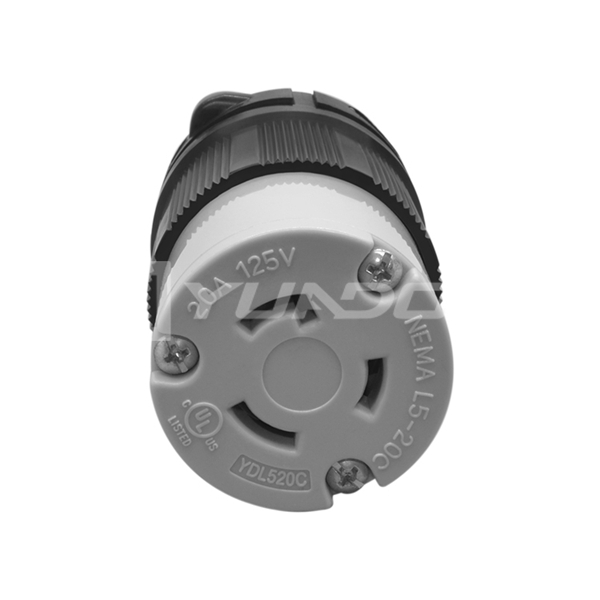

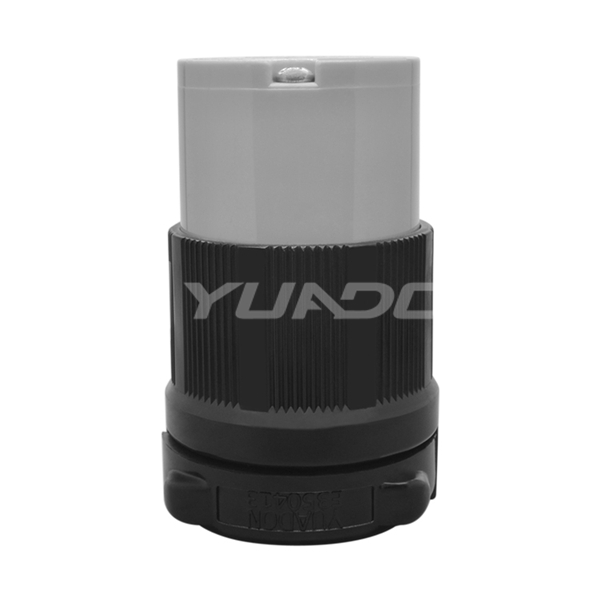

20 Amp Twist-Lock connector NEMA L5-20C Locking Cord Connector nema l5-20 female connector

  • Product Item: Twist-Lock Connector

  • NEMA Configuration: L5-20R

  • Rated Current: 20A

  • Rated Voltage: 125V

  • Wiring Scheme: 2 Pole, 3 Wire Grounding

  • Listings: UL / cUL  E350413

  • Sample day: 1-3 days

  • Lead time: 8-15days

  • Guarantee: 365 days

Production details



UL Listed 20A 125V ( 20 Ampere, 125 Volt)) NEMA L5-20R ( L5-20C) Twist Lock Connector Impact Resistant Dupont Nylon Shell, Cable Dust / Moisture Shied (IP20),2-Pole, 3-Wire ,Grounding, Terminal Accept 14/3, 12/3, 10/3 AWG Size Conductor

Basic Information

Product Item

Locking Type Connector

Model number

YDL520C

NEMA Configuration

L5-20R

Wiring Scheme

2 Pole, 3 Wire Grounding

Amperage

20 Amp

Voltage

125V AC

Color

Black

Blade Holder Material

Gray Polycarbonate

Retainer Material

Clear Polycarbonate

Housing Material

Nylon-Black

Cord Clamp Material

Nylon-Black

Blade Material

Brass

Terminal Screw Material

#8-32 Brass

Ground Screw Material

#8-32 Brass(Green)

Flammability

UL 94 V-0

Listings

UL/cUL  E350413

Rohs Compliant

Yes

Package

100pcs/ctn=18.5KG  43.5*32.3*36cm/ctn

Shipping way

by air/sea/express

Place of Origin

Guangdong, China (Mainland)

Sample day

1-3 days

Mass order Lead time

8-15days



Features

1. NEMA L5-20 Twist Lock Connector (also called out as L5-20C, part number L520C.
2. Imported America Dupont Nylon Body resists Damage From Severe Impact, Abrasion and Chemicals.
3. Ratings: 125V 30A (125-Volt, 20-Amp), 2-Pole, 3-Wire, Grounding.
4. It is certified by UL (CUL,CSA) and UL File Number is E350413.
5. Cable Dust / Moisture Shield : IP20.
6. Strain Relief F(cord grip range) = 0.375"-1.156" DIA.
7. Internal Wiring Chambers Isolate Individual Conductors to Prevent Flashover, Arcing, and Stray Strands of Wire.
8. Quick-thread assembly: screws and cord-grip screws come backed-out, ready to wire for turning to lock and unlock.
9. Solid Brass Blades And Contacts Feature Improved Conductivity, Low heat, and Long Life
10. Double dovetail design, provides superior protection against cord pull-out forces; Raised ribs provide non-slip gripping profile and Scallop shell design provides non-slip gripping surface for insertion and withdrawal.

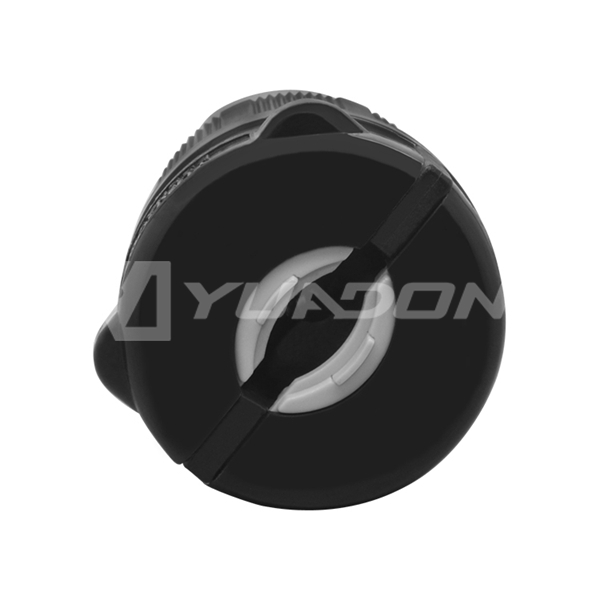

11. Flexible rubber cord grommet conforms to power cord to protection from oils water or chips entering wiring chamber

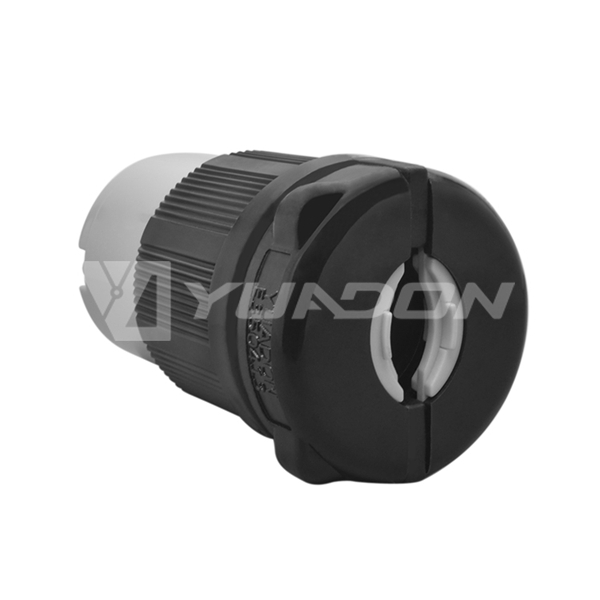

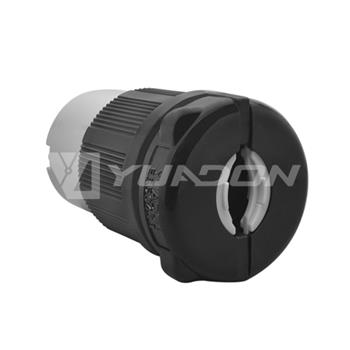

12. New-design external cord grips, which provides visible assurance of safe and proper cord retention
13. Application: generators, camper trailers, RV trailers, RV extension cord etc.

How to buy from us?

1. Please confirm the Products and quantities that you would like to purchase by contacting our sales persons.
2. We will send you a Proforma Invoice once we get your order list, and will help you calculate the best freight charge, by courier, by air or by sea if required.
3. After you send us the payment, please provide the bank copy if possible, so that we can start to arrange production asap.
4. As soon as the goods are shipped out, we will let you know the tracking number.
5. For after sales-service. Please contact the sales persons directly or contact us.

Notes

This charger adapter plug converts the power outlet only, Please don't use it with any high power appliances such as hair dryer, straightener and water heater. Please make sure your device carries an electrical converter when you travel to other countries with different electrical output.

Trade Condition

1. MOQ: 100 pcs / per model after sample order.

2. Payment Terms: T/T, Paypal and L/C for option.

a. By T/T: Bank transfer to YUADON company bank account
b. By Paypal: There will be 4% of total price as paypal fee.
c. By L/C(letter of credit): the order is more than USD10,000.

3. Shipment

We have a Strong cooperation with our forwarder, so we will give a best shipping cost to you
A. For small order, ship by DHL, EMS, UPS, FedEx international express.
B. For big order, ship by Air or by Sea.
