Item Name: YDL515P
NEMA Configuration : NEMA L5-15P
Rated Current: 15A
Rated Voltage: 125V
UL certificate: UL/cUL E350413
Sample day: 1-3 days
Lead time: 5-17days
Guarantee: 365 days
Production details

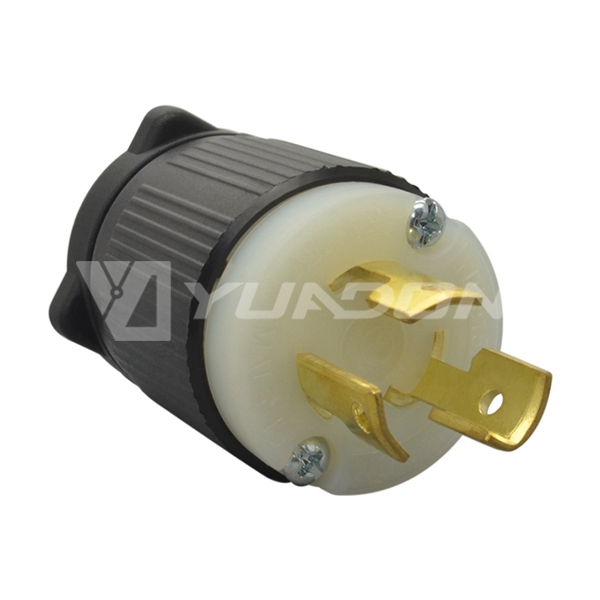

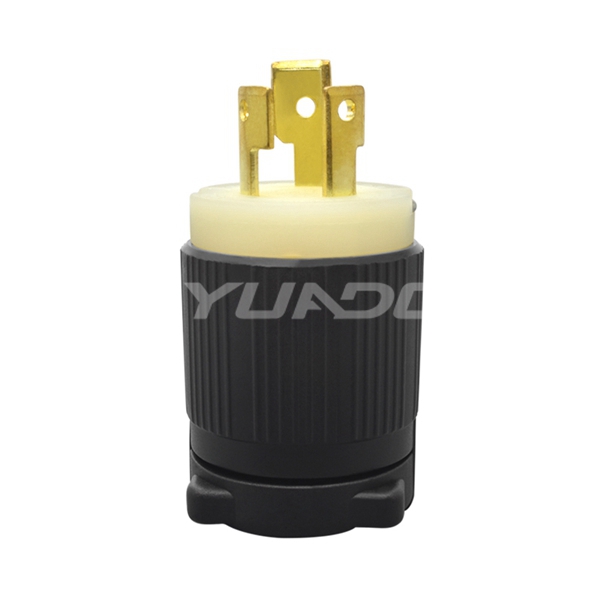

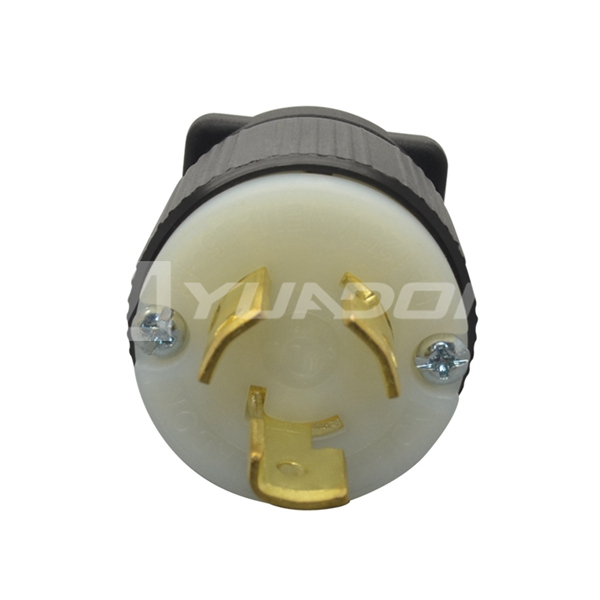

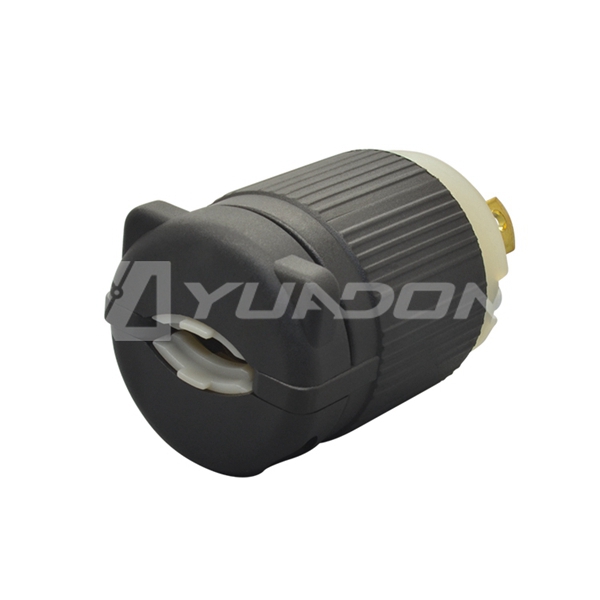

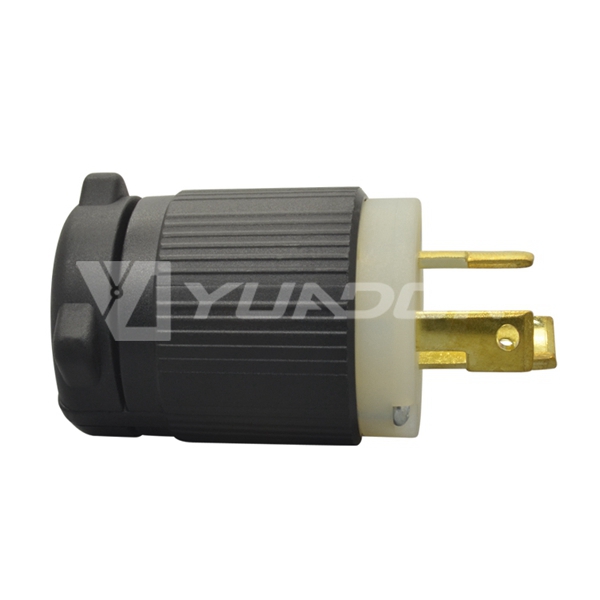

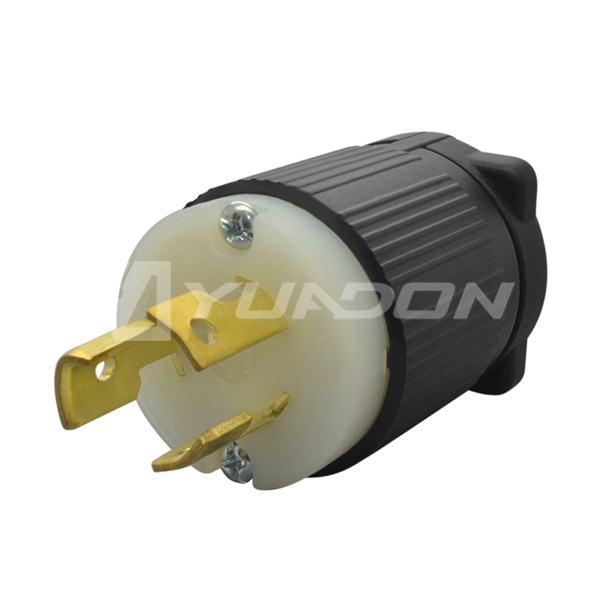

UL CUL Listed America Dupont Nylon Housing 15 Ampere 125 Volt NEMA L5-15P (L5-15) Twist Lock Locking Plug, 2-Pole, 3-WIre Grounding ( 2P+E), Industrial Grade, Terminal Accept 18/3, 16/3, 14/3, 12/3 AWG Size Conductor
Basic Information
Product Item |
Locking Type Plug |
Model number |
YDL515P |
NEMA Configuration |
L5-15P |
Wiring Scheme |
2 Pole, 3 Wire Grounding |
Amperage |
15 Amp |
Voltage |
125V AC |
Color |
Black |
Blade Holder Material |
Nylon-Natural |
Retainer Material |
Clear Polycarbonate |
Housing Material |
Nylon-Black |
Cord Clamp Material |
Nylon-Black |
Power contacts Material |
.0315’’(0.8m/m) Brass Alloy |
Terminal Screw Material |
#8-32 Brass |
Ground Screw Material |
#8-32 Brass(Green) |
Flammability |
UL 94 V-0 |
Listings |
UL/cUL E350413 |
Rohs Compliant |
Yes |
Unit weight | 64g/pcs |
Package |
200pcs/ctn=13KG 45*38*27cm/ctn |
Shipping way |
by air/sea/express |
Place of Origin |
Guangdong, China (Mainland) |
Sample day |
1-3 days |
Mass order Lead time |
5-7days |
Features
1.It is made with imported America Dupont nylon for housing and 100% full copper pin, which makes it possess impact resistant body and effectively resists damage from severe impact, abrasion and chemicals
2. Certified by UL CUL and (C) UL File Number is E350413 (Standard: UL 498)
4. Ratings: 15A ,125V, AC 60HZ
5. Wiring Method : Back Wiring
6. Terminal Accept : 18/3, 16/3, 14/3, 12/3 AWG Size Conductor
7. Strain Relief (Cord Grif Range): 0.300"-.650" DIA. N
8. Temperature Rating: 105℃
9. Flamability Rating: UL 94V-0
10. Application: Mounted on a 3-electrical wire cable or used in Industry, Lighting, UPS etc.
How to buy from us?
1. Please confirm the Products and quantities that you would like to purchase by contacting our sales persons.
2. We will send you a Proforma Invoice once we get your order list, and will help you calculate the best freight charge, by courier, by air or by sea if required.
3. After you send us the payment, please provide the bank copy if possible, so that we can start to arrange production asap.
4. As soon as the goods are shipped out, we will let you know the tracking number.
5. For after sales-service. Please contact the sales persons directly or contact us.
Notes
This charger adapter plug converts the power outlet only, Please don't use it with any high power appliances such as hair dryer, straightener and water heater. Please make sure your device carries an electrical converter when you travel to other countries with different electrical output.
Trade Condition
1. MOQ: 100 pcs / per model after sample order.
2. Payment Terms: T/T, Paypal and L/C for option.
a. By T/T: Bank transfer to YUADON company bank account
b. By Paypal: There will be 4% of total price as paypal fee.
c. By L/C(letter of credit): the order is more than USD10,000.
3. Shipment
We have a Strong cooperation with our forwarder, so we will give a best shipping cost to you
A. For small order, ship by DHL, EMS, UPS, FedEx international express.
B. For big order, ship by Air or by Sea.
