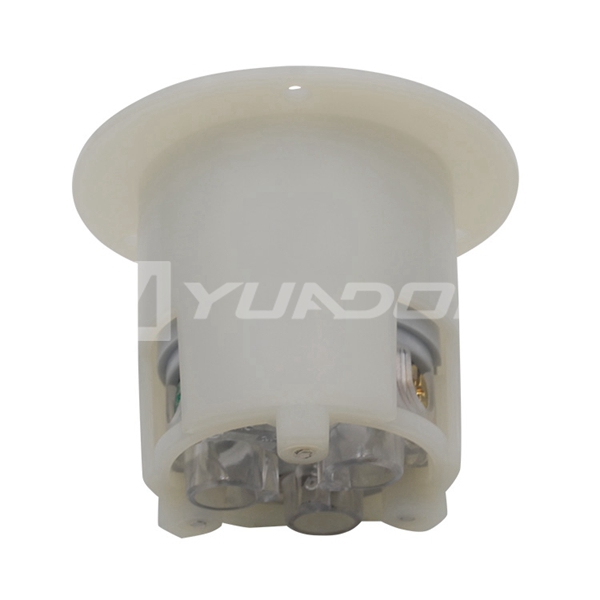

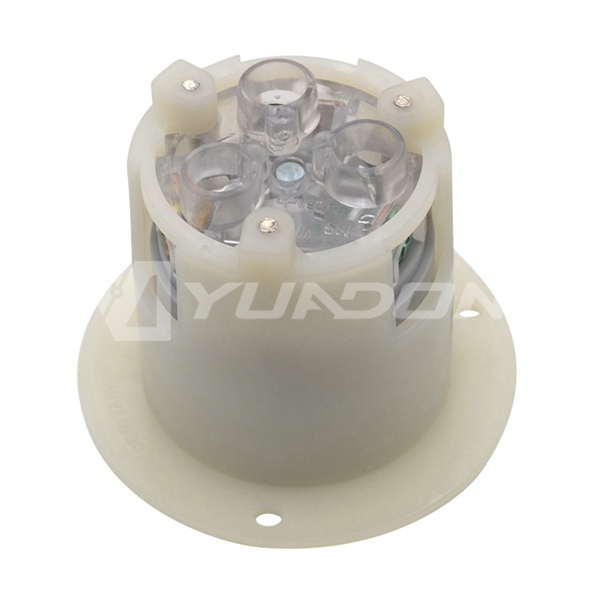

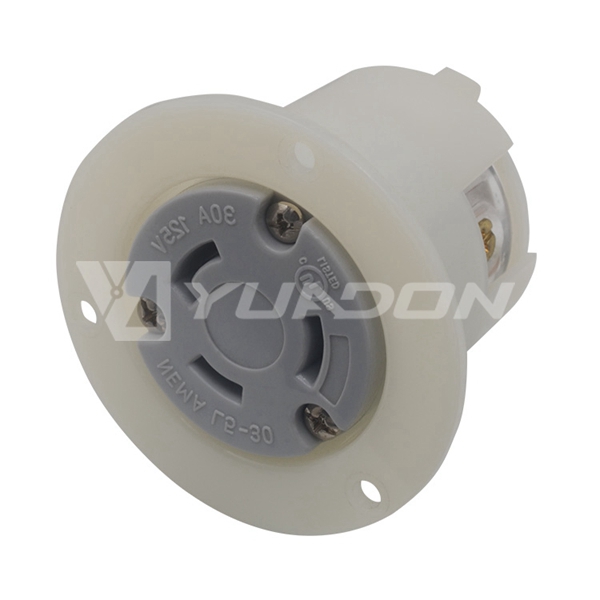

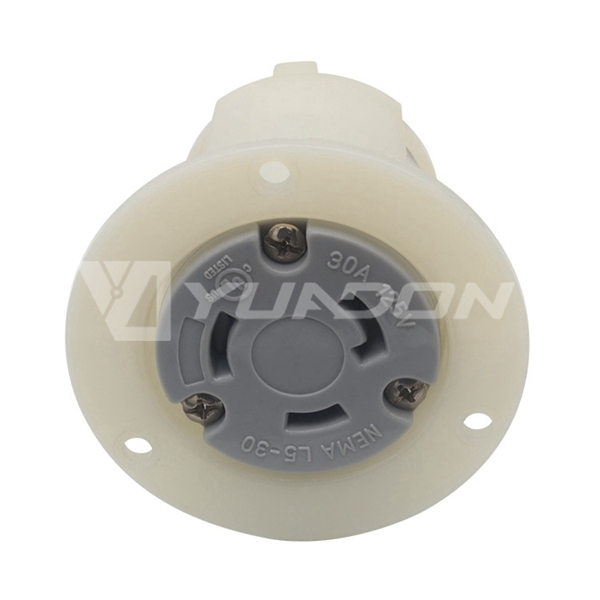

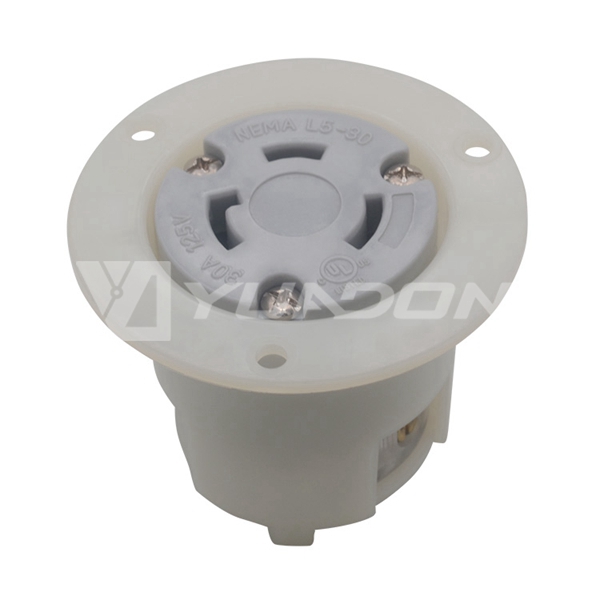

Locking Flanged outlet NEMA L5-30R

Model number: YDA-L530C
NEMA Configuration: L5-30R
Rated Current: 30A
Rated Voltage: 125V
Listings: UL / cUL E350413

Sample day: 1-3 days
Lead time: 8-15days
Guarantee: 365 days

Production details

Top Quality UL CUL CSA Listed 30 Amp 125 Volt NEMA L5-30 Flanged Outlet Receptacle Power Plug Socket Dupont Nylon Construction Specification / Industrial Grade, 2 Pole,3 wire Grounding (2P+E)

Basic Information

Product Item	Locking Flanged Outlet
Model number	YDA-L530C
NEMA Configuration	L5-30R
Wiring Scheme	2 Pole, 3 Wire Grounding
Amperage	30 Amp
Voltage	125V AC
Color	Black
Housing Material	Nylon-Black
Cord Clamp Material	Nylon-Black
Terminal Screw Material	#10-32 solid Brass
Ground Screw Material	#10-32 solid Brass(Green)
Contact Holder Material	Nylon-Natural
Listings	UL / cUL E350413
Rohs Compliant	Yes

Features

1. America Dupont nylon for housing, resists damage from severe impact, abrasion and chemicals
2. Clear See-Thru Wiring Block & Color Coded Positive Crimp Lock Wire Clamps Provides Visual Inspection
3. NEMA Configuration : NEMA L5-30 Power Outlet , 2-Pole, 3-Wire ,Grounding
4. Certified by c( UL)us and UL file number is E350413 (Standard: UL 498)
5. Electric Ratings: 125 Volts, 30 Ampere
6. Mechanical Specifications Terminal Accommodation: #16 - #8 AWG
7. Environmental Specifications Flammability: Meets UL94 requirements; V2 rated
8. Temperature Rating: -40°C to 60°C (-40°F to 140°F)
9. Temperature Rise: Max. 30ºC (86°F) after 50 cycles of overload @ 150% of rated current (DC)
10. Electrical Specifications Dielectric Voltage: Twice the device rating + 1000V per UL498
11. Application: Lighting, Generators , PDU,UPS etc.
