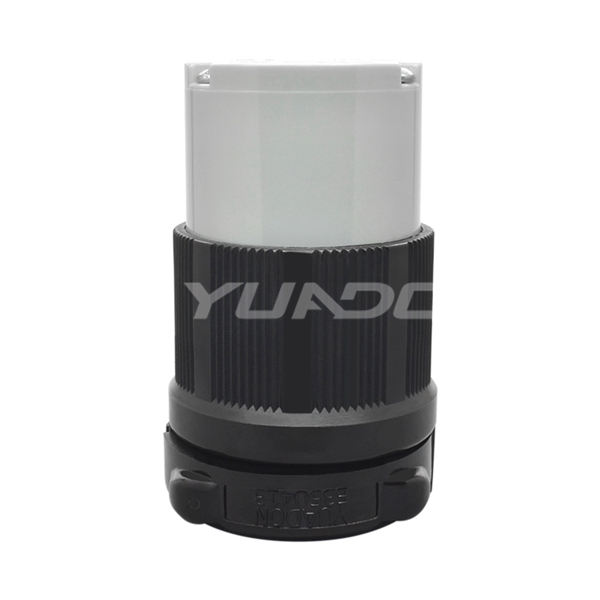

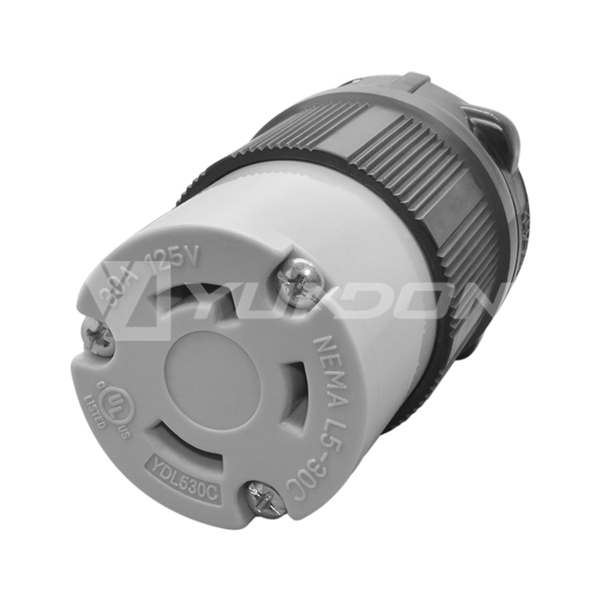

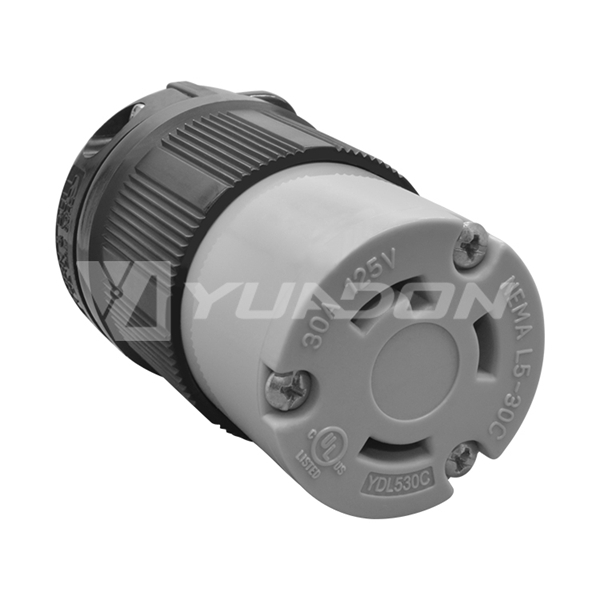

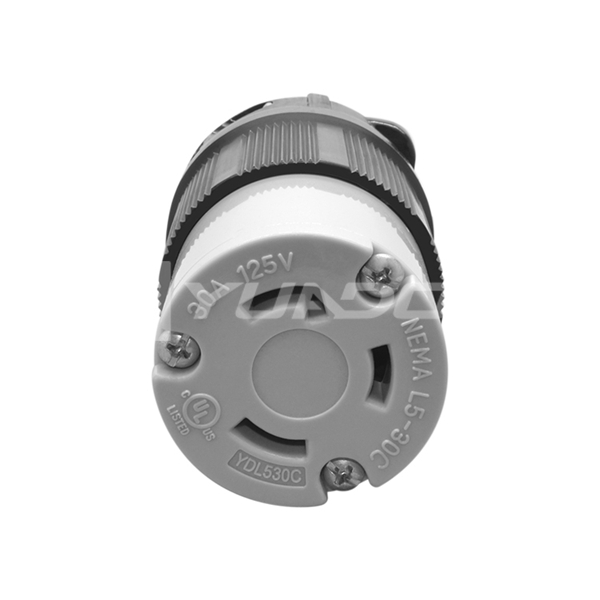

30 ampere 125 volt NEMA L5-30C Locking Cord Connector

NEMA L5-30R locking connector 30 ampere 125 volt NEMA L5-30C Locking Cord Connector

  • Product Item: Twist-Lock Connector

  • NEMA Configuration: L5-30R

  • Rated Current: 30A

  • Rated Voltage: 125V

  • IWiring Scheme: 2 Pole, 3 Wire Grounding

  • Listings: UL / cUL  E350413

  • Sample day: 1-3 days

  • Lead time: 8-15days

  • Guarantee: 365 days

Production details



UL Listed 30A 125V (30 Ampere, 125 Volt) NEMA L5-30R (L5-30C) Twist Lock Connector Receptacle, Impact Resistant Nylon Shell, Cable Dust / Moisture Shied (IP20), 2 Pole 3 Wire Grounding (2P+E),Terminal Accept 14/3, 12/3, 10/3 AWG Size Conductor

Basic Information

Product Item

Locking Type Connector

Model number

YDL530C

NEMA Configuration

L5-30R

Wiring Scheme

2 Pole, 3 Wire Grounding

Amperage

30 Amp

Voltage

125V AC

Color

Black

Blade Holder Material

Gray Polycarbonate

Retainer Material

Clear Polycarbonate

Housing Material

Nylon-Black

Cord Clamp Material

Nylon-Black

Blade Material

Brass

Terminal Screw Material

#10-32 Brass

Ground Screw Material

#10-32 Brass(Green)

Flammability

UL 94 V-0

Listings

UL/cUL  E350413

Rohs Compliant

Yes

Package

100pcs/ctn=18.5KG  43.5*32.3*36cm/ctn

Shipping way

by air/sea/express

Place of Origin

Guangdong, China (Mainland)

Sample day

1-3 days

Mass order Lead time

8-15days




Features

1. Item: NEMA L5-30 Twist Lock Connector (also called out as L5-20C), part number L520C
2. It is made with imported America Dupont Nylon for shell and full brass pin for metal parts, impact  corrison resistant, heavy duty industrial / specification grade
3. Ratings: 125V 30A (125-Volt, 30-Amp), 2-Pole, 3-Wire, Grounding
4. It is certified by UL /CSA/CULand UL File Number is E350413
5. Terminal Accept: 14/3, 12/3, 10/3 AWG Size Conductor
6. Cable Dust / Moisture Shield : IP20
7.  Strain Relief F(cord grip range) = 0.375"-1.156" DIA.
8.  Double dovetail design, provides superior protection against cord pull-out forces
9.  Raised ribs provide non-slip gripping profile and Scallop shell design provides non-slip gripping surface  for insertion and withdrawal.
10. Quick-thread assembly: screws and cord-grip screws come backed-out, ready to wire for turning to lock and unlock.

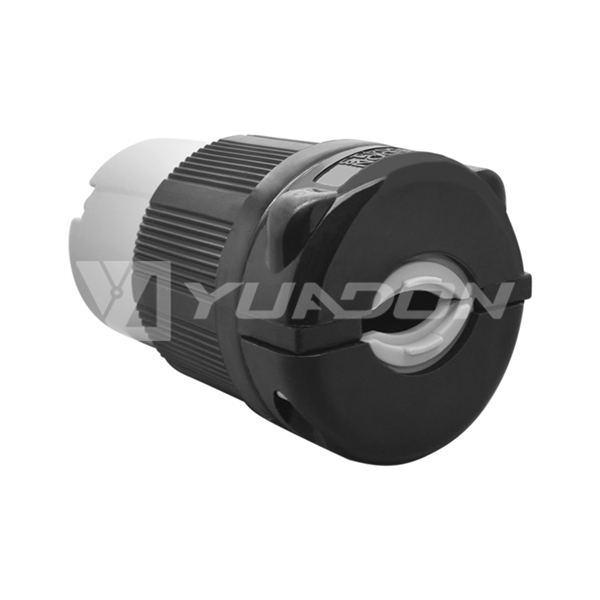

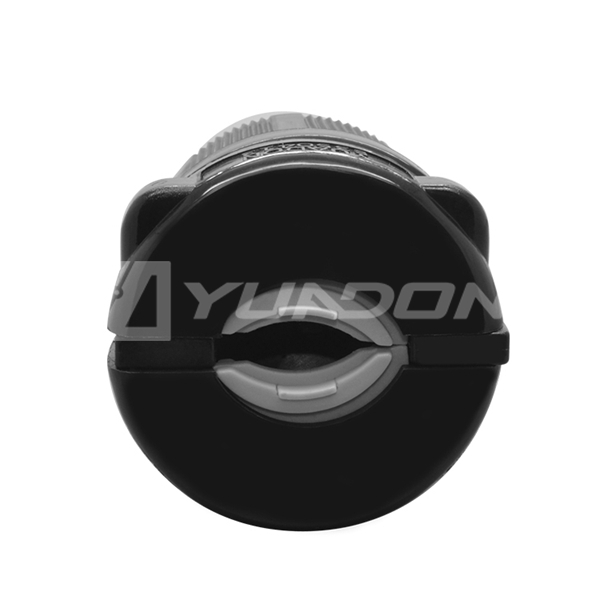

11. New-design external cord grips, which provides visible assurance of safe and proper cord retention
12. Flexible rubber cord grommet conforms to power cord to protection from oils water or chips entering wiring chamber
13. Application: Generators, RV trailer, RV extension cord ,Roadtrek RV, motorhome, building supply etc.

How to buy from us?

1. Please confirm the Products and quantities that you would like to purchase by contacting our sales persons.
2. We will send you a Proforma Invoice once we get your order list, and will help you calculate the best freight charge, by courier, by air or by sea if required.
3. After you send us the payment, please provide the bank copy if possible, so that we can start to arrange production asap.
4. As soon as the goods are shipped out, we will let you know the tracking number.
5. For after sales-service. Please contact the sales persons directly or contact us.

Notes

This charger adapter plug converts the power outlet only, Please don't use it with any high power appliances such as hair dryer, straightener and water heater. Please make sure your device carries an electrical converter when you travel to other countries with different electrical output.

Trade Condition

1. MOQ: 100 pcs / per model after sample order.

2. Payment Terms: T/T, Paypal and L/C for option.

a. By T/T: Bank transfer to YUADON company bank account
b. By Paypal: There will be 4% of total price as paypal fee.
c. By L/C(letter of credit): the order is more than USD10,000.

3. Shipment

We have a Strong cooperation with our forwarder, so we will give a best shipping cost to you
A. For small order, ship by DHL, EMS, UPS, FedEx international express.
B. For big order, ship by Air or by Sea.
