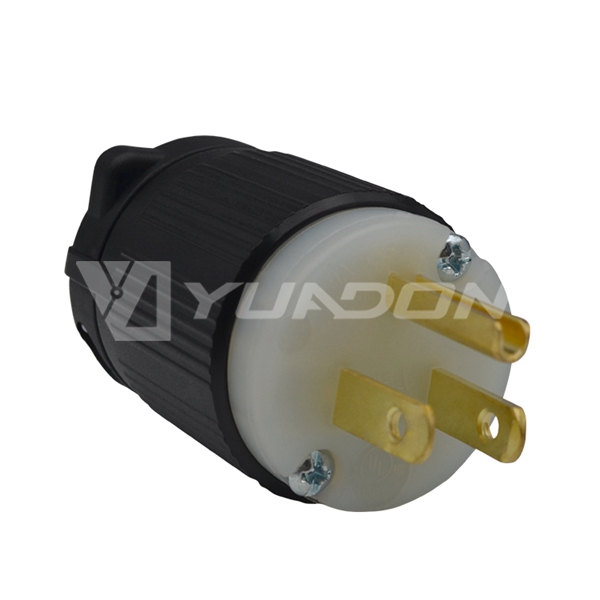

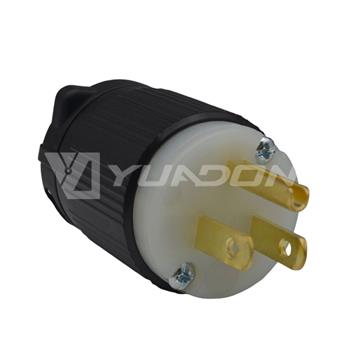

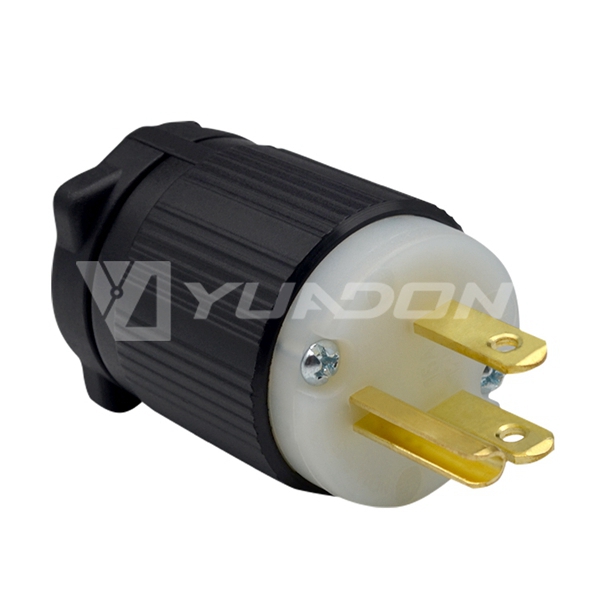

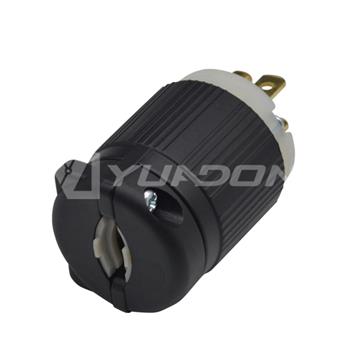

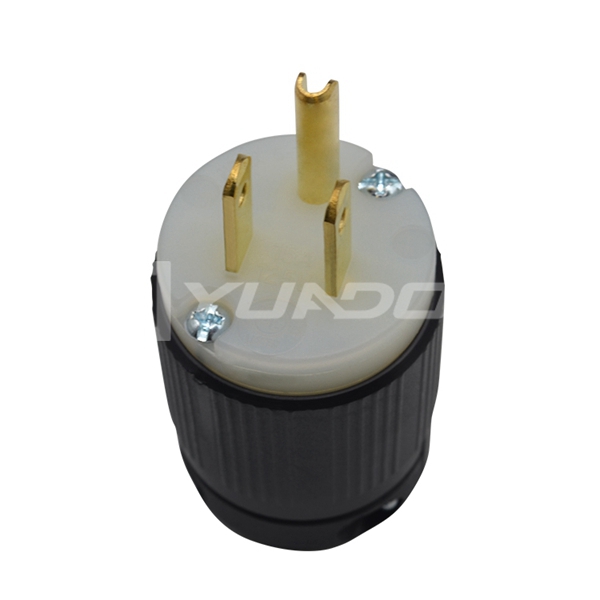

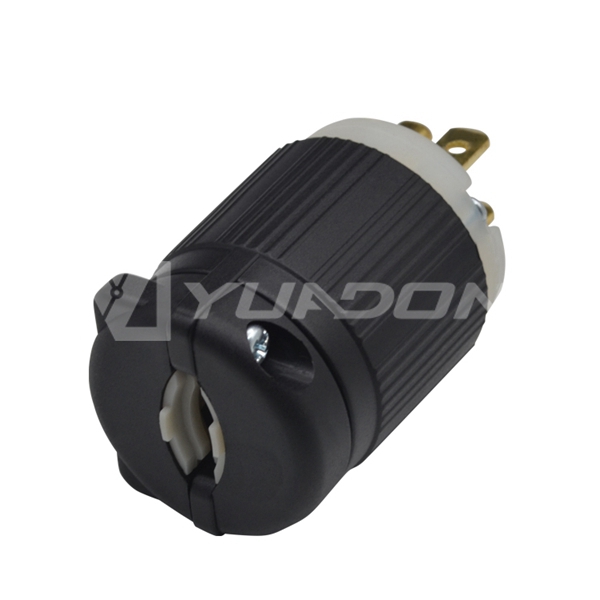

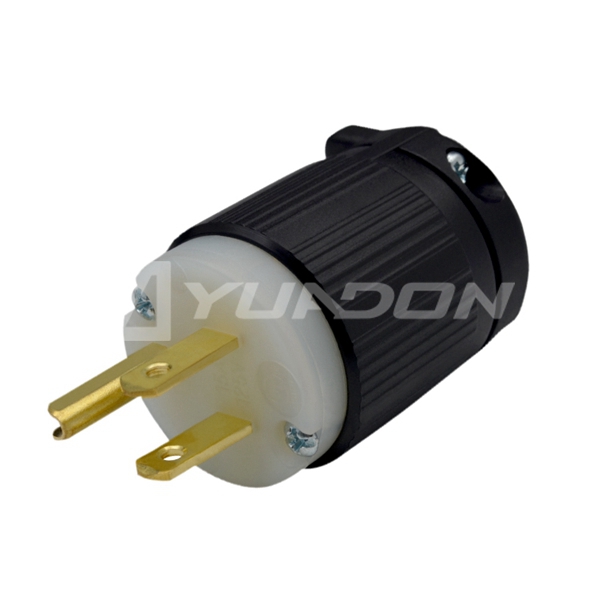

15 Amp 125 Volt Industrial Grade Straight Blade Plug

15 Amp 125 Volt Industrial Grade Straight Blade Plug Nema 5-15P Rewireable American Plug

  • Item Name: YD515P

  • NEMA Configuration : NEMA 5-15P

  • Rated Current: 15A

  • Rated Voltage: 125V

  • UL certificate: UL/cUL E350413

  • Sample day: 1-3 days

  • Lead time: 8-15days

  • Guarantee: 365 days

Production details



UL / CSA Listed 15 Ampere 125 volt NEMA 5-15P (5-15) American Standard Straight Blade Assembly Cable Power Plug 2-Pole 3-Wire Grounding (2P+E), Industrial Grade,Terminal Accept 10/3, 12/3, 14/3, 16/3, 18/3 AWG Size Conductors

Basic Information

Product Item

Straight Blade Plug

Model number

YD515P

NEMA Configuration

5-15P

Wiring Scheme

2 Pole, 3 Wire Grounding

Amperage

15 Amp

Voltage

125V AC

Color

Black

Blade Holder Material

Nylon-Natural

Retainer Material

Clear Polycarbonate

Housing Material

Nylon-Black

Cord Clamp Material

Nylon-Black

Contact Blades Material

.063’’(1.6m/m) solid Brass

Ground Contact Blade Material

.040’’(1.0m/m) solid Brass

Terminal Screw Material

#8-32 Brass

Ground Screw Material

#8-32 Brass(Green)

Flammability

UL 94 V-0

Listings

UL/cUL  E350413

Rohs Compliant

Yes

Package

200pcs/ctn=12.5KG 45*38*27cm/ctn

Shipping way

by air/sea/express

Place of Origin

Guangdong, China (Mainland)

Sample day

1-3 days

Mass order Lead time

8-15days



Features

1. It is made with American Dupont nylon and 100% full brass pin
2. Impact resistant body effectively resists damage from severe impact, abrasion and chemicals etc.
3. UL or CUL certificate and UL File Number : E350413 (Standard: UL 498)
4. Ratings: 15A ,125V, AC 60HZ
5. Gender : Male, Electrical Straight Blade Plug, Screw Type
6. Terminal Accept : 10/3, 12/3, 14/3, 16/3, 18/3 AWG Size Conductors
7. Strain Relief (Cord Grif Range): 0.300-0.655 DIA
8. Screw Torque / Terminal Screws: 12 In. Lbs
9. Strain Relief / Assembly Screws= 8-10 In. Lbs.
10. Temperature Range: Max. +75℃; Min -45℃

How to buy from us?

1. Please confirm the Products and quantities that you would like to purchase by contacting our sales persons.
2. We will send you a Proforma Invoice once we get your order list, and will help you calculate the best freight charge, by courier, by air or by sea if required.
3. After you send us the payment, please provide the bank copy if possible, so that we can start to arrange production asap.
4. As soon as the goods are shipped out, we will let you know the tracking number.
5. For after sales-service. Please contact the sales persons directly or contact us.

Notes

This charger adapter plug converts the power outlet only, Please don't use it with any high power appliances such as hair dryer, straightener and water heater. Please make sure your device carries an electrical converter when you travel to other countries with different electrical output.

Trade Condition

1. MOQ: 100 pcs / per model after sample order.

2. Payment Terms: T/T, Paypal and L/C for option.

a. By T/T: Bank transfer to YUADON company bank account
b. By Paypal: There will be 4% of total price as paypal fee.
c. By L/C(letter of credit): the order is more than USD10,000.

3. Shipment

We have a Strong cooperation with our forwarder, so we will give a best shipping cost to you
A. For small order, ship by DHL, EMS, UPS, FedEx international express.
B. For big order, ship by Air or by Sea.
