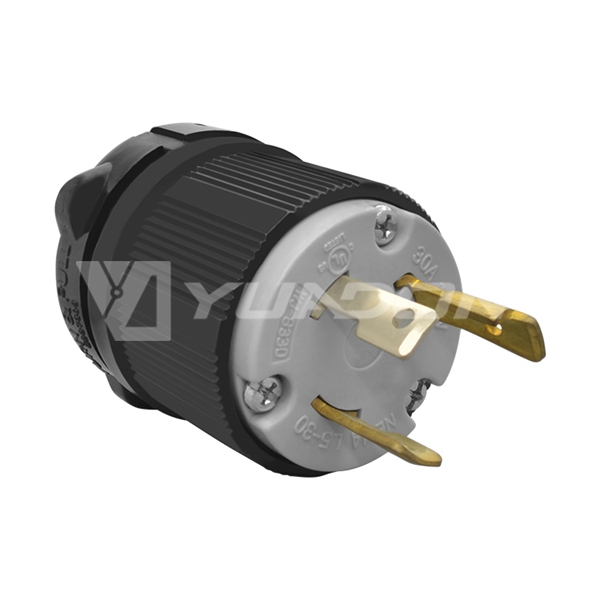

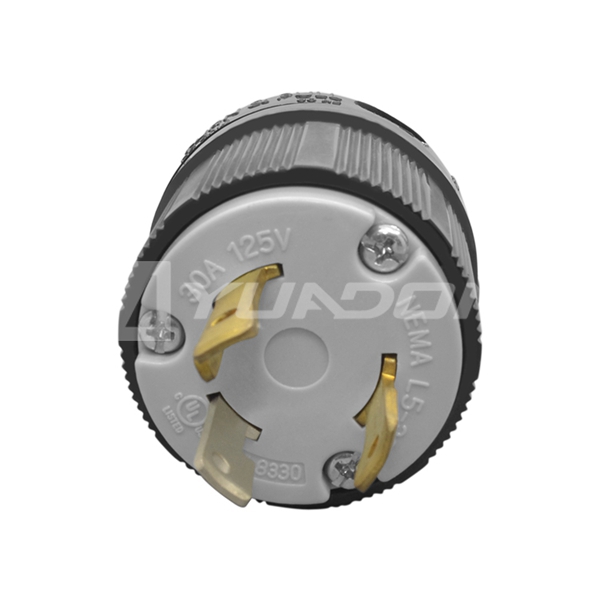

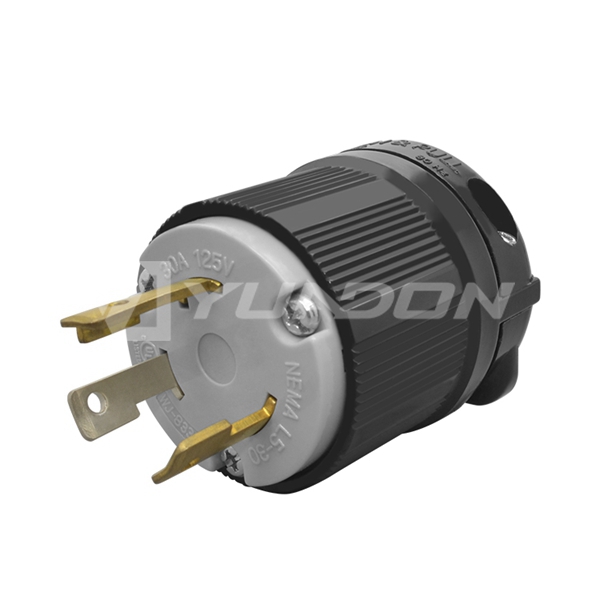

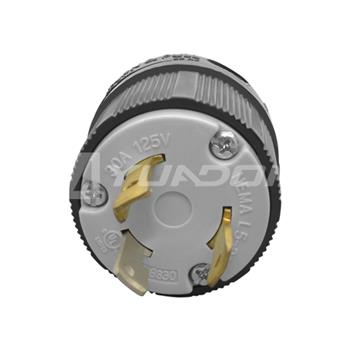

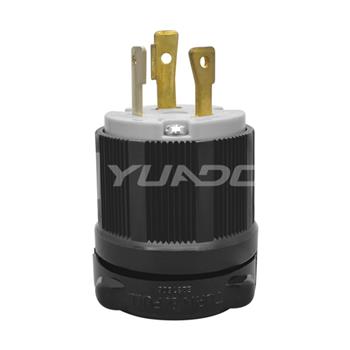

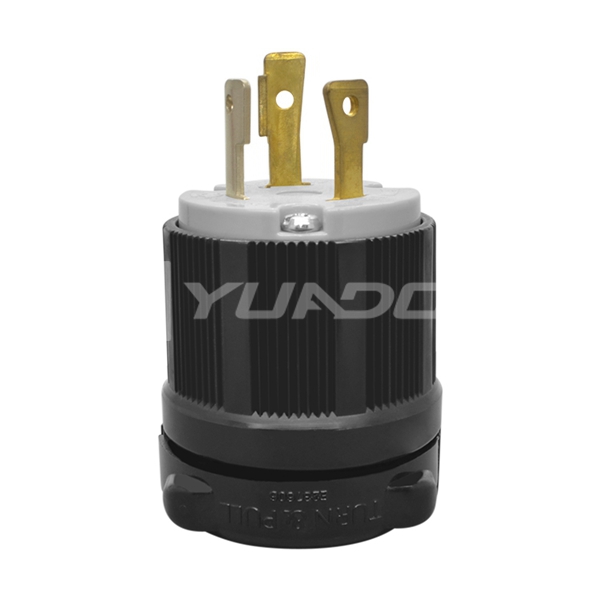

125v NEMA L5-30P Industrial Grade Locking Yuadon Nema plug receptacle Plug

NEMA L5-30 Twistlock Male Plug 30 Amp 125v NEMA L5-30P Industrial Grade Locking Yuadon Nema plug receptacle Plug

  • IProduct Item: Twist-Lock plug

  • NEMA Configuration: L5-30P

  • Rated Current: 30A

  • Rated Voltage: 125V

  • Wiring Scheme: 2 Pole, 3 Wire Grounding

  • Listings: UL / cUL  E350413

  • Sample day: 1-3 days

  • Lead time: 3-4days

  • Guarantee: 365 days

Production details



UL Listed 30A 125V (30 Ampere, 125 Volt) NEMA L5-30P (L5-30) Twist Lock Plug for Impact Resistant Nylon Shell, Cable Dust / Moisture Shied (IP20), 2 Pole 3 Wire Grounding (2P+E),Terminal Accept 14/3, 12/3, 10/3 AWG Size Conductor

Basic Information

Product Item

Locking Type Plug

Model number

YDL530P

NEMA Configuration

L5-30P

Wiring Scheme

2 Pole, 3 Wire Grounding

Amperage

30 Amp

Voltage

125V AC

Color

Black

Blade Holder Material

Gray Polycarbonate

Retainer Material

Clear Polycarbonate

Housing Material

Nylon-Black

Cord Clamp Material

Nylon-Black

Blade Material

Brass

Terminal Screw Material

#10-32 Brass

Ground Screw Material

#10-32 Brass(Green)

Flammability

UL 94 V-0

Listings

UL/cUL  E350413

Rohs Compliant

Yes

Package

100pcs/ctn=16.5KG  43.5*32.3*36cm/ctn

Shipping way

by air/sea/express

Place of Origin

Guangdong, China (Mainland)

Sample day

1-3 days

Mass order Lead time

8-15days



Advantages

1. Item: NEMA L5-30 Twist Lock Plug (also called out as L5-20P, part number L520P.
2. Super Tough Dupont Nylon Body Resists Damage From Severe Impact, Abrasion and Chemicals.
3. Internal Wiring Chambers Isolate Individual Conductors to Prevent Flashover, Arcing, and Stray Strands of Wire.
4. Ratings: 125V 30A (125-Volt, 30-Amp), 2-Pole, 3-Wire, Grounding
5. It is with UL (CSA/CUL) certificate and UL File Number is E350413
6. Solid Brass Blades And Contacts Feature Improved Conductivity, Low Resistance, Low Heat, and Long Life
7. Cable Dust / Moisture Shield : IP20

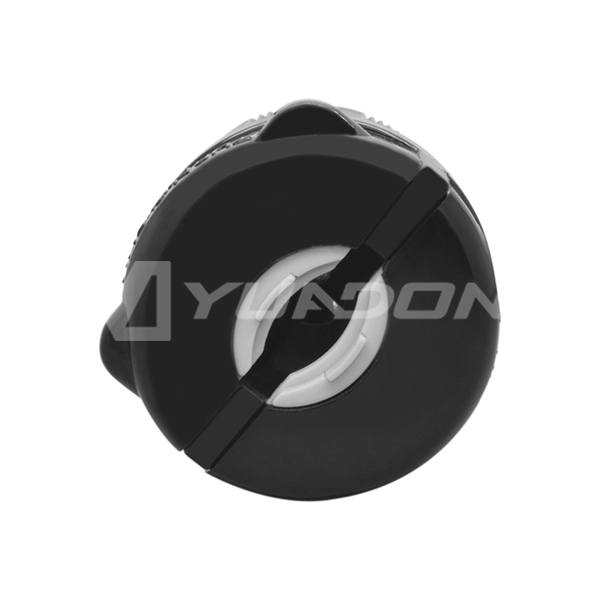

8. Strain Relief F(cord grip range) = 0.375"-1.156" DIA
9. Quick-thread assembly: screws and cord-grip screws come backed-out, ready to wire for turning to lock and unlock.
10. Double dovetail design, provides superior protection against cord pull-out forces
11. Raised ribs provide non-slip gripping profile and Scallop shell design provides non-slip gripping surface  for insertion and withdrawal.
12. Flexible rubber cord grommet conforms to power cord to protection from oils water or chips entering wiring chamber
13. New-design external cord grips, which provides visible assurance of safe and proper cord retention
14. Deep slotted triple drive face module and cord clamp screws
15. Application: generators, camper trailers, RV trailers, RV extension cord etc.
