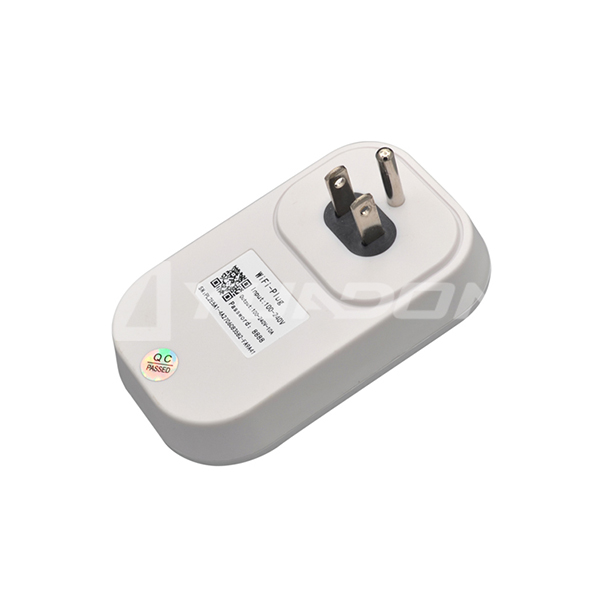

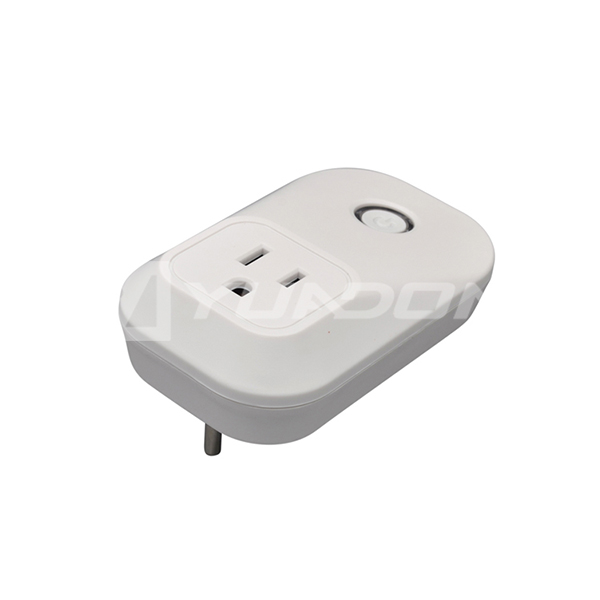

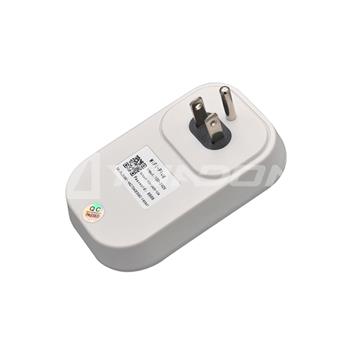

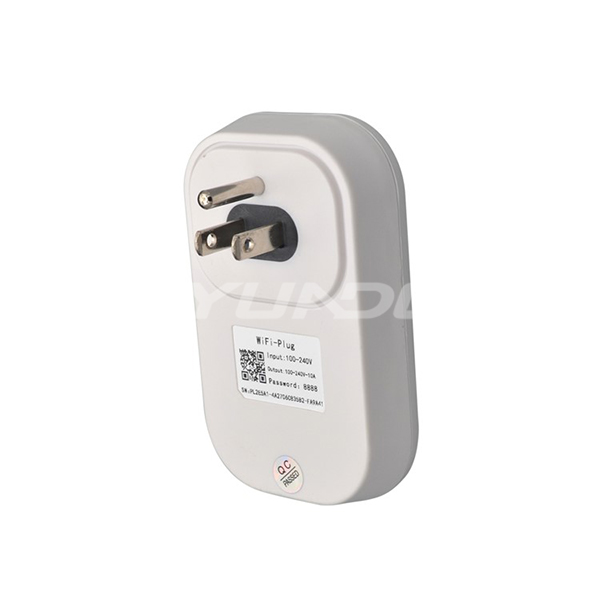

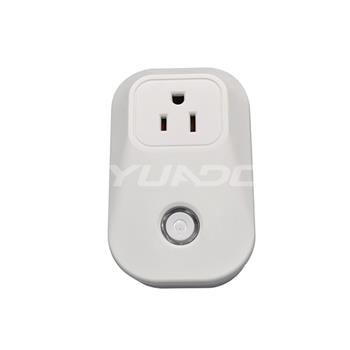

Item Name: WF-03
Input voltage: AC110—240V 50/60HZ
Rated power: 10A
Certificate: CE/ROHS
Sample day: 1-3 days
Lead time: 3-4days
Guarantee: 365 days
Production details
Basic Information
|
Item Name |
WF-03 |
|
Size |
100mm*60mm*30mm |
|
Mobile Interview |
IOS6.1+、Android 2.3+ |
|
WIFI |
802 11b /g/n |
|
Input voltage |
AC110—240V 50/60HZ |
|
Rated power |
10A |
|
Plug socket type |
USA type(Type B) |
|
Package Size |
15*9*8cm |
|
Weight |
150g |
| Certificate | CE/ROHS |
|
Remote control |
Yes |
|
Time switch |
Yes |
|
Time-delay switch |
Yes |
|
Sample day |
1-3 days |
|
Lead time |
3-4days |
|
Guarantee |
365 days |
Device Configuration
1. Software Download (iSmartplug)
Download iSmartplug from App Store for IOS device or from Google’s Play Store for Android device.
2. Blue LED light ”Slow Flash”
Ready for new connection mode
3. WiFi configuration
Make sure your Smart phone or tablet，the wifi status is ON. Inset the power plug to wall plug. Open the APP, press the top right ”○+”. Choose “Setup WIFI connection”.
4. Blue LED light ”Solid blue live”
Wi-Fi connected.
